32 CCTV Camera System, 5 Megapixel, 32 channel 4K POE NVR Recorder, 48TB Capacity, SMART with person and vehicle Identification

32 CCTV Camera System, 5 Megapixel, 32 channel 4K POE NVR Recorder, 48TB Capacity, SMART with person and vehicle Identification

Regular price £2,699.00 GBP
Regular price £3,600.00 GBP Sale price £2,699.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

32 CCTV Cameras and 4K POE NVR recorder with smart AI features. Experience crystal clear images and advanced AI features.

Enhance your property's security today.

36 Channels at 12MP
48TB HDD Capacity
8* Alarm In/4* Alarm Out
2-Way Audio via NVR

Superior Security for Your Home or Business

We bring you the ultimate 32 camera surveillance solution with the combination of Reolink 5 Megapixel cameras and NVR recorder. Whether you are looking to enhance the security of your home or business, this combination offers advanced features and reliable performance to meet your surveillance needs. Due to the size of this kit network cables are not part of the package but may be supplied separately.

5MP Cameras:

  • 5MP High-resolution imaging for clear and detailed footage
  • Built-in infrared night vision for round-the-clock monitoring
  • Advanced AI motion detection technology with instant alerts
  • Durable weatherproof housing for reliable performance in various conditions
  • Wide coverage to monitor critical angles effectively

32 Channel Ultra HD NVR Recorder:

  • Support for multiple cameras for a unified surveillance system
  • Powerful recording capacity to store and manage video footage effectively
  • Various recording modes including continuous, scheduled, and motion-triggered recording
  • Remote access capability for monitoring and viewing footage from anywhere
  • Intelligent search and playback features for easy retrieval of specific events or incidents

This is a comprehensive surveillance solution that offers seamless integration and powerful functionality, to provide you with all the necessary components to set up a professional-grade security system.

With multiple cameras, you can cover a wide area and ensure that every critical angle is monitored effectively. Whether you need surveillance for a large property, office space, or retail store, this offers the scalability and versatility to meet your specific requirements.

The cameras and NVR work together flawlessly, allowing you to enjoy features like motion detection, instant alerts, high-resolution recording, and remote access. With their user-friendly interfaces and straightforward setup process, you can have your surveillance system up and running in no time.

Investing in this system not only provides you with peace of mind but also enhances the security of your premises. Whether it's deterring potential intruders, monitoring activities, or keeping an eye on your property while you're away, the combined power of the 5MP cameras and Ultra High Definition 32 Channel NVR recorder ensures that you have a reliable and efficient surveillance solution at your fingertips.

Take control of your security like never before. Experience the ultimate peace of mind and stay connected to what matters most.

IP-Camera-Specifications

Model

RLC-520A

Video & Audio

Image Sensor

1/2.7" CMOS sensor

Video Resolution

Default: 2560 x 1920 (5.0 Megapixels) at 30 frames/sec

Lens

f=4.0mm fixed; F=2.0, with IR-cut filter

Video Format

H.264

Field of View

Horizontal: 80°

Vertical: 42°

Day & Night

Auto-switching with IR-cut filter

Night Vision

30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio

Audio recording

Power

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V 1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

MicroSD card slot (Max. 256GB)

Audio

Built-in microphone

Software Features

Frame Rate

Mainstream: 2fps - 30fps (default: 30fps)

Substream: 4fps - 15fps (default: 10fps)

Code Rate

Mainstream: 1024Kbps -8192Kbps (default: 6144Kbps)

Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browser Supported

IE, Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection/Person detection/Vehicle detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Smart Home

Google Assistant

Working Environment

Temperature

Operating temperature: -10°C ~ +55°C (14°F ~ 131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP66

Size & Weight

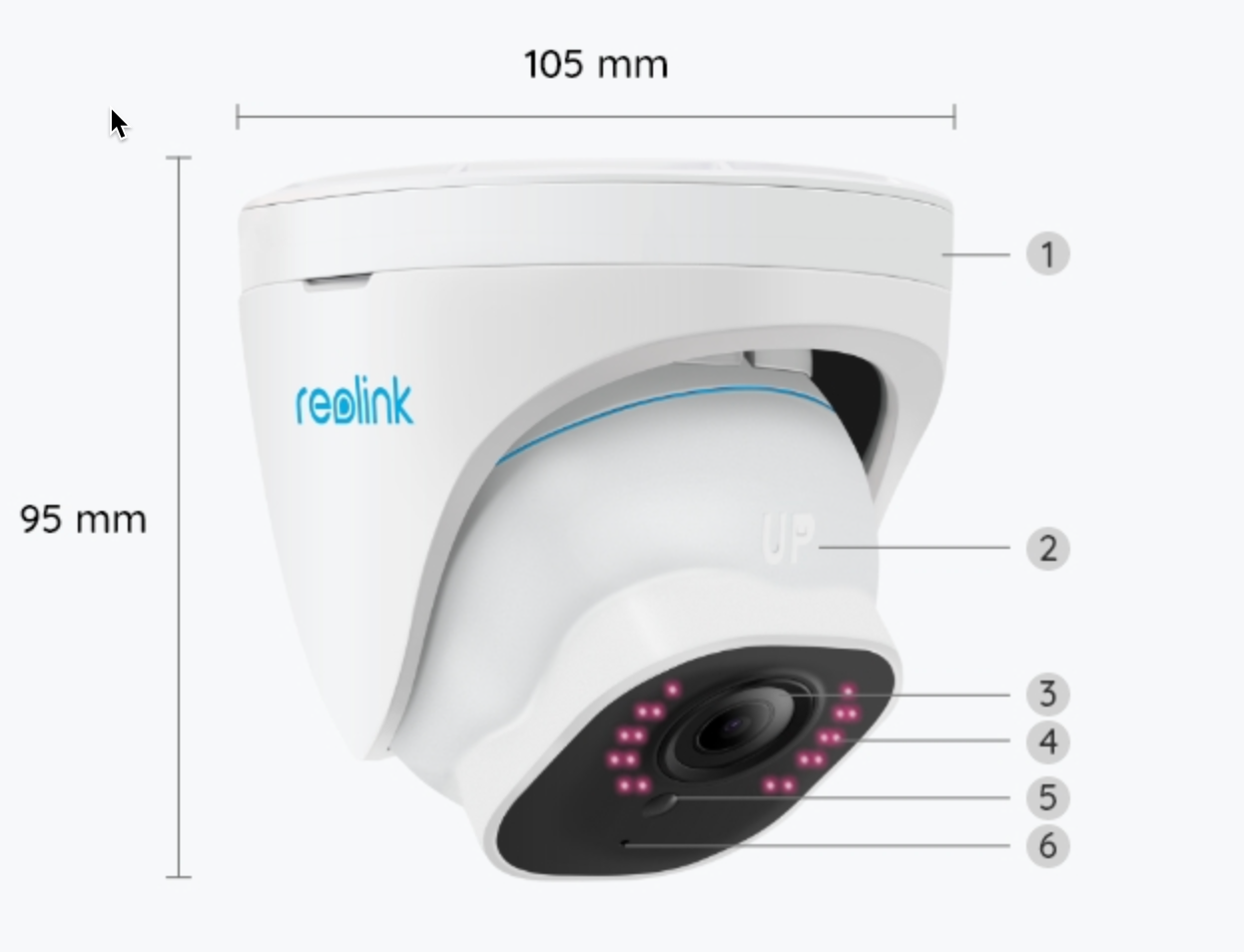

Dimension

Φ105*95mm

Weight

467.5g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/


36 channel -NVR-Specifications

Model

RLN36

Name

36-Channel 12MP Network Video Recorder

Hardware

Hardware

N5MB01

External Interfaces

Video Out

1 HDMI, 1 VGA

Audio Ports

1 audio-in channel, RCA; 1 audio-out channel, RCA

USB Ports

Front panel: 1 x USB 2.0; back panel: 1 x USB 2.0, 1x USB 3.0

Ethernet Ports

4 x RJ-45, 10/100/1000 Mbps self-adaptive (for IP cameras)

1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)

No PoE Port

Alarm

In: 8 channels; Out: 4 channels

Video

IP Camera Input

Supports up to 36 channels of IPC access; each channel up to 12MP input

Video Output

HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

Audio

Two-Way Audio

Built-in audio in & out ports

Audio In

Via cameras with mic; via built-in 1 channel

Audio Out

Via bulit-in 1 channel

Recording

Video Compression

H.265, H.264

Live View / Playback Resolution

4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p (supports only 1-channel playback if you view it in 8MP or higher resolution.)

Synchronous Playback

1-4 channels

Supported Modes

Person/vehicle event recording; motion-triggered recording; 24/7 recording

Storage

Internal HDD

3 SATA ports for 3 HDDs (optional)

External HDD

No

Max. Capacity

48TB (max. 16TB HDD for each SATA)

Network

Network Protocols

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP

Browsers Supported

Edge, Firefox, Chrome, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 12V/5.4A

Power Consumption

<10W(without HDD)

Working Environment

-10°C ~+45°C (14°F~113°F); 10%~90%

Dimensions

330 x 48 x 310mm

Weight

2.26kg (without HDD)

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.
