CCTV-Kit.com
16 CCTV Camera System, 5 Megapixel, 16 channel 4K POE NVR Recorder, SMART with person and vehicle Identification
16 CCTV Camera System, 5 Megapixel, 16 channel 4K POE NVR Recorder, SMART with person and vehicle Identification
Couldn't load pickup availability
16 CCTV Cameras and 4K POE NVR recorder with smart AI features. Experience crystal clear images and advanced AI features.
Enhance your property's security today.
Superior Security for Your Home or Business
We bring you the ultimate 16 camera surveillance solution with the combination of Reolink 5 Megapixel cameras and NVR recorder. Whether you are looking to enhance the security of your home or business, this combination offers advanced features and reliable performance to meet your surveillance needs. Due to the size of this kit network cables are not part of the package but may be supplied separately.
5MP Cameras:
- 5MP High-resolution imaging for clear and detailed footage
- Built-in infrared night vision for round-the-clock monitoring
- Advanced AI motion detection technology with instant alerts
- Durable weatherproof housing for reliable performance in various conditions
- Wide coverage to monitor critical angles effectively
16 Channel 4K NVR Recorder:
- Support for multiple cameras for a unified surveillance system
- Powerful recording capacity to store and manage video footage effectively
- Various recording modes including continuous, scheduled, and motion-triggered recording
- Remote access capability for monitoring and viewing footage from anywhere
- Intelligent search and playback features for easy retrieval of specific events or incidents
This is a comprehensive surveillance solution that offers seamless integration and powerful functionality, to provide you with all the necessary components to set up a professional-grade security system.
With multiple cameras, you can cover a wide area and ensure that every critical angle is monitored effectively. Whether you need surveillance for a large property, office space, or retail store, this offers the scalability and versatility to meet your specific requirements.
The cameras and NVR work together flawlessly, allowing you to enjoy features like motion detection, instant alerts, high-resolution recording, and remote access. With their user-friendly interfaces and straightforward setup process, you can have your surveillance system up and running in no time.
Investing in this system not only provides you with peace of mind but also enhances the security of your premises. Whether it's deterring potential intruders, monitoring activities, or keeping an eye on your property while you're away, the combined power of the 5MP cameras and 4k 16 Channel NVR recorder ensures that you have a reliable and efficient surveillance solution at your fingertips.
Take control of your security like never before. Experience the ultimate peace of mind and stay connected to what matters most.
|
IP-Camera-Specifications |
||
|
Model |
RLC-520A |
|
|
Video & Audio |
Image Sensor |
1/2.7" CMOS sensor |
|
Video Resolution |
Default: 2560 x 1920 (5.0 Megapixels) at 30 frames/sec |
|
|
Lens |
f=4.0mm fixed; F=2.0, with IR-cut filter |
|
|
Video Format |
H.264 |
|
|
Field of View |
Horizontal: 80° |
|
|
Vertical: 42° |
||
|
Day & Night |
Auto-switching with IR-cut filter |
|
|
Night Vision |
30 meters (100ft) (LED: 18pcs/14mil/850nm) |
|
|
Audio |
Audio recording |
|
|
Power |
PoE |
IEEE 802.3af, 48V Active |
|
DC Power |
DC 12.0V 1A, <12W |
|
|
Interface |
Power |
DC power port |
|
System |
Reset button |
|
|
Ethernet |
One 10M/100Mbps; RJ45 |
|
|
Storage |
MicroSD card slot (Max. 256GB) |
|
|
Audio |
Built-in microphone |
|
|
Software Features |
Frame Rate |
Mainstream: 2fps - 30fps (default: 30fps) |
|
Substream: 4fps - 15fps (default: 10fps) |
||
|
Code Rate |
Mainstream: 1024Kbps -8192Kbps (default: 6144Kbps) |
|
|
Substream: 64Kbps - 512Kbps (default: 256Kbps) |
||
|
Browser Supported |
IE, Edge, Chrome, Firefox, Safari |
|
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
|
Smart Alarm |
Motion detection/Person detection/Vehicle detection |
|
|
Record Mode |
Motion-triggered recording (default); scheduled recording; 24/7 recording |
|
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
|
|
Maximal User Access |
20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
|
|
Smart Home |
Google Assistant |
|
|
Working Environment |
Temperature |
Operating temperature: -10°C ~ +55°C (14°F ~ 131°F) |
|
Humidity |
Operating humidity: 10% ~ 90% |
|
|
Waterproof |
IP66 |
|
|
Size & Weight |
Dimension |
Φ105*95mm |
|
Weight |
467.5g |
|
|
Warranty |
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ |
|

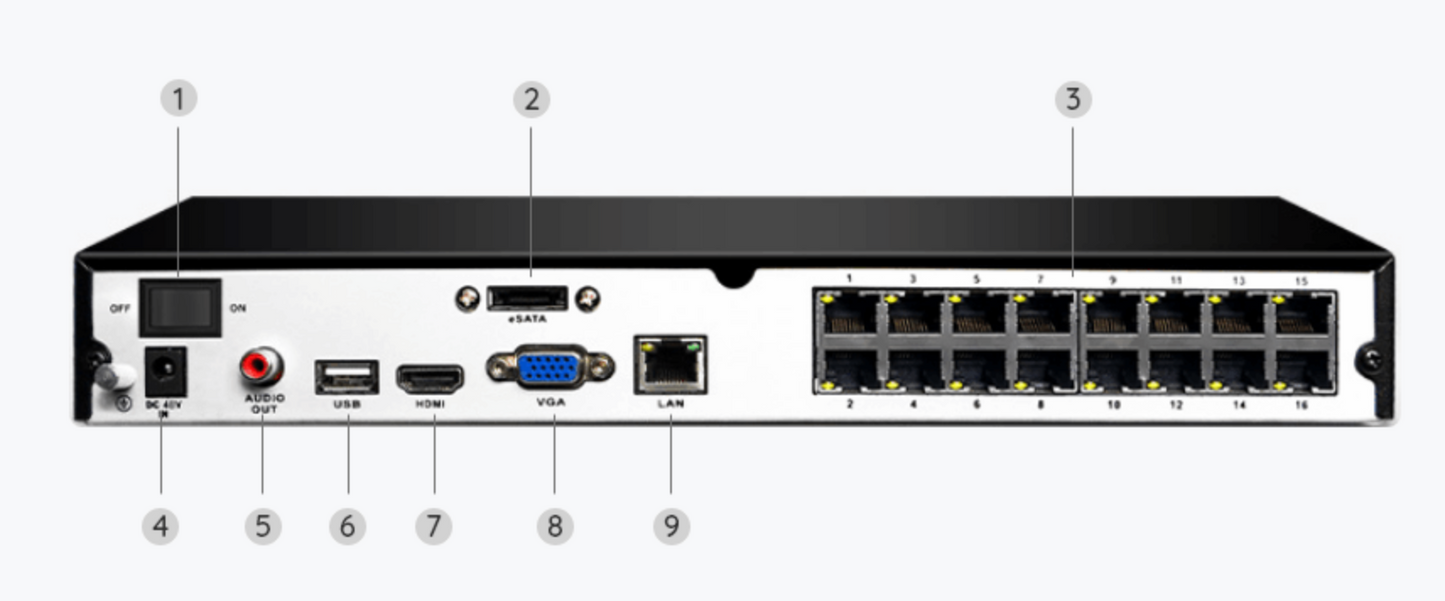

4K-PoE-NVR-Specifications |
||
|
Model |
RLN16-410 |
|
|
Hardware |
Hardware |
3TB HDD: H3MB18/N6MB01 4TB HDD: N6MB01 |
|
Video/Audio Input |
IP Video Input |
PoE IP camera x 16 |
|
Audio Input |
Cameras with built-in mic |
|
|
Video/Audio Output |
Video Output |
VGA, HDMI |
|
Display Resolution |
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768 |
|
|
VGA: 1920*1080, 1280*1024, 1280*720, 1024*768 |
||
|
Audio output |
1-channel, RCA |
|
|
Decoding |
Live View / Playback Resolution |
4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/72 0p |
|
Video Format |
H.265, H.264 |
|
|
Synchronous Playback |
Up to 4 channels |
|
|
HDD |
SATA |
2 x SATA interface (1 x 3TB/4TB HDD included) |
|
Capacity |
Up to 12TB (max. 6TB capacity for each HDD) |
|
|
External HDD |
No |
|
|
External Interface |
USB Interface |
2 x USB 2.0 |
|
Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN |
|
|
16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
||
|
PoE |
Max. Power Per Port |
25W |
|
Supported Standard |
IEEE 802.3 af/at |
|
|
Network |
Network Protocol |
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
|
Browser Supported |
Firefox, Chrome, Edge, Safari |
|
|
OS Supported |
PC: Windows, Mac OS; smartphone: iOS, Android |
|
|
Max. User Access |
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
|
|
General |
Power Supply |
DC 48V~54V |
|
Power Consumption |
<10W (without HDD & PoE) |
|
|
Working Environment |
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
|
|
Dimensions |
330 x 45 x 285mm |
|
|
Weight |
2.4kg |
|
|
Warranty |
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
